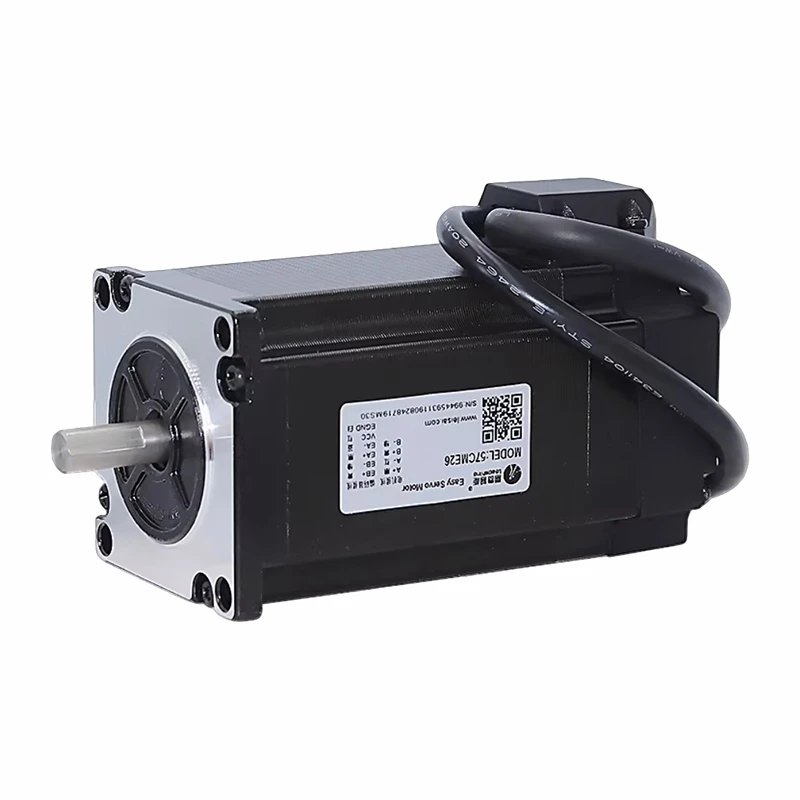

CS-M series Single Shaft High Speed Closed Loop Stepper Motor integrated the rotary encoder, which can provide larger torque, lower heat and more reliable positioning control. CS-M series also includes the types with brake, waterproof and different encoder resolution.
Features:
- NEMA 11(28mm) to NEMA34(86mm)
- 1000 / 5000-line encoders
- Up to 12N.m
Product Specifications:
|
Model |
Phase |
Frame Size (NEMA) |
Length (mm) |
Holding Torque (N.m) |
Phase Current (A) |
Shaft Diameter (mm) |
Type |
|
CS-M23435-S |
2 |
34 |
95 |
3.5 |
4 |
12.7 |
Standard |
|
CS-M23435 |
2 |
34 |
95 |
3.5 |
4 |
14 |
Standard |
|
ES-MH342200 |
3 |
42 |
245 |
20 |
4.2 |
19 |
Standard |
|
ES-MH342120 |
3 |
42 |
161 |
12 |
4.2 |
19 |
Standard |
|
ES-MH33480 |
3 |
34 |
173 |
8 |
3 |
14 |
Standard |
|
ES-M32320-S |
3 |
23 |
93 |
2 |
3.4 |
6.35 |
Inch shaft |
|
ES-M32320 |
3 |
23 |
93 |
2 |
3.4 |
8 |
Standard |
|
ES-M32309-S |
3 |
23 |
73 |
0.9 |
3.4 |
6.35 |
Inch shaft |
|
ES-M32309 |
3 |
23 |
73 |
0.9 |
3.4 |
8 |
Standard |
|
CS-M211013 |
2 |
11 |
62 |
0.13 |
1.2 |
5 |
Standard |
|
CS-M21704B |
2 |
17 |
93 |
0.4 |
2 |
4.5 |
Brake |
|
CS-M21704 |
2 |
17 |
62 |
0.4 |
1.5 |
5 |
Standard |
|
CS-M21706B |
2 |
17 |
110 |
0.6 |
2 |
4.5 |
Brake |
|
CS-M21706 |
2 |
17 |
70 |
0.6 |
1.5 |
5 |
Standard |
|
CS-M21708 |
2 |
17 |
83 |
0.8 |
1.5 |
5 |
Standard |
|
CS-M22313 |
2 |
23 |
75 |
1.3 |
4 |
8 |
Standard |
|
CS-M22313B |
2 |
23 |
117 |
1.2 |
4 |
8 |
Brake |
|
CS-M22313WP |
2 |
23 |
95 |
1.3 |
3 |
8 |
IP65 |
|
CS-M22323 |
2 |
23 |
96 |
2.3 |
5 |
8 |
Standard |
|
CS-M22323-S |
2 |
23 |
96 |
2.3 |
5 |
6.35 |
Inch shaft |
|
CS-M22323B |
2 |
23 |
137 |
2.1 |
5 |
8 |
Brake |
|
CS-M22323WP |
2 |
23 |
114 |
2.3 |
4 |
8 |
IP65 |
|
CS-M22326 |
2 |
23 |
104 |
2.6 |
5 |
8 |
Standard |
|
CS-M22326-S |
2 |
23 |
104 |
2.6 |
5 |
6.35 |
Inch shaft |
|
CS-M22321-L |
2 |
23 |
86 |
2.1 |
5 |
8 |
Standard |
|
CS-M22331-L |
2 |
23 |
105 |
3.1 |
5 |
8 |
Standard |
|
CS-M22331-L-S |
2 |
23 |
105 |
3.1 |
5 |
9.525 |
Inch shaft |
|
CS-M22430 |
2 |
24 |
107 |
3 |
5 |
8 |
Standard |
|
CS-M22430B |
2 |
24 |
116 |
3 |
5 |
8 |
Brake |
|
CS-M23445 |
2 |
34 |
109 |
4.5 |
6 |
14 |
Standard |
|
CS-M23445-S |
2 |
34 |
109 |
4.5 |
6 |
12.7 |
Inch shaft |
|
CS-M23445B |
2 |
34 |
144 |
4.5 |
6 |
14 |
Brake |
|
CS-M23445WP |
2 |
34 |
115 |
4.5 |
4 |
14 |
IP65 |
|
CS-M23480 |
2 |
34 |
126 |
8 |
6 |
14 |
Standard |
|
CS-M23480-S |
2 |
34 |
126 |
8 |
6 |
12.7 |
Inch shaft |
|
CS-M23480WP |
2 |
34 |
133 |
8 |
6 |
14 |
IP65 |
|
CS-M23485 |
2 |
34 |
147 |
8.5 |
6 |
14 |
Standard |
|
CS-M23485-S |
2 |
34 |
147 |
8.5 |
6 |
12.7 |
Inch shaft |
|
CS-M23485B |
2 |
34 |
182 |
8.5 |
6 |
14 |
Brake |
|
CS-M23485WP |
2 |
34 |
154 |
8.5 |
6 |
14 |
IP65 |
|
CS-M234120 |
2 |
34 |
158 |
12 |
6 |
14 |
Standard |
|
CS-M234120B |
2 |
34 |
193 |
12 |
6 |
14 |
Brake |
|
CS-M234120WP |
2 |
34 |
164 |
12 |
6 |
14 |
IP65 |
Technical Advantages:
Torque Enhancement
Compared with stepper motors from other manufacturers, TOMATECH CS-M series Single Shaft High Speed Closed Loop Stepper Motor adopts torque enhancement technology, which increases the motor's output torque by 25% to 40% across the full speed range. This technology achieves torque improvement by boosting motor efficiency, without the need to increase input voltage or input current.
Smooth Speed Operation
Featuring low torque ripple and smooth operation, it is ideal for applications requiring low noise and quiet performance.
Higher Precision
CS-M series Single Shaft High Speed Closed Loop Stepper Motor can operate accurately with a small incremental step angle of 0.9°. and with 1000 lines rotary encoder,the motor and drive becomes a closed loop,it can avoid steps losing ,When used with a microstepping driver, it enables even finer microstepping angles for ultra-precise positioning.
