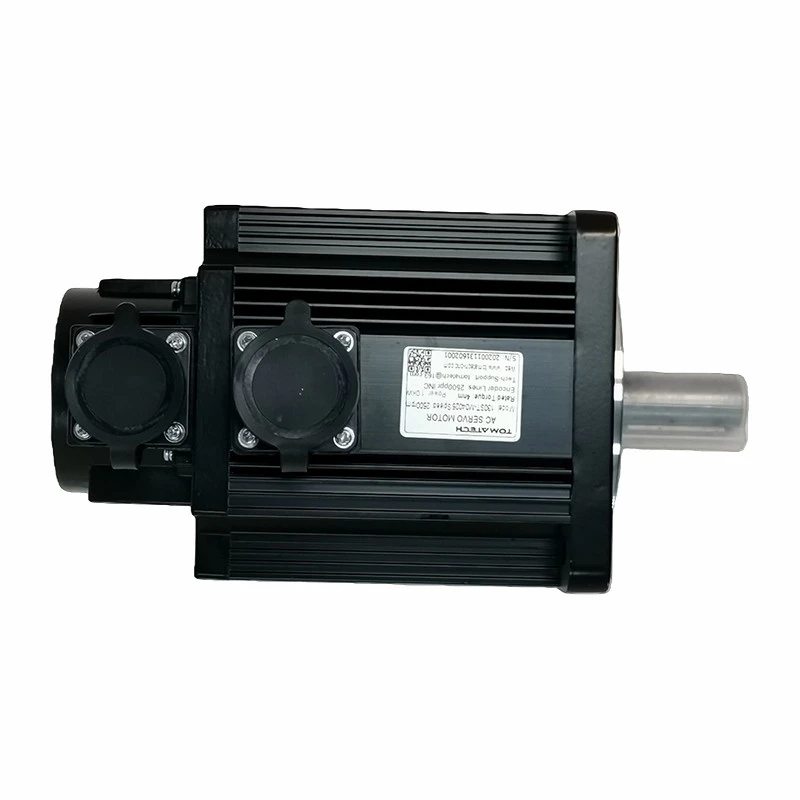

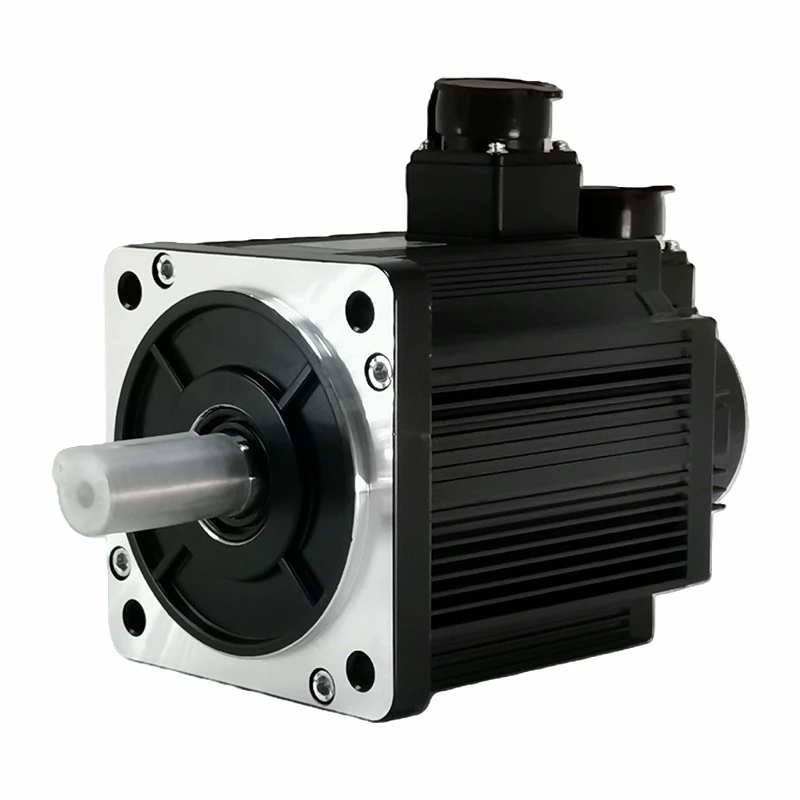

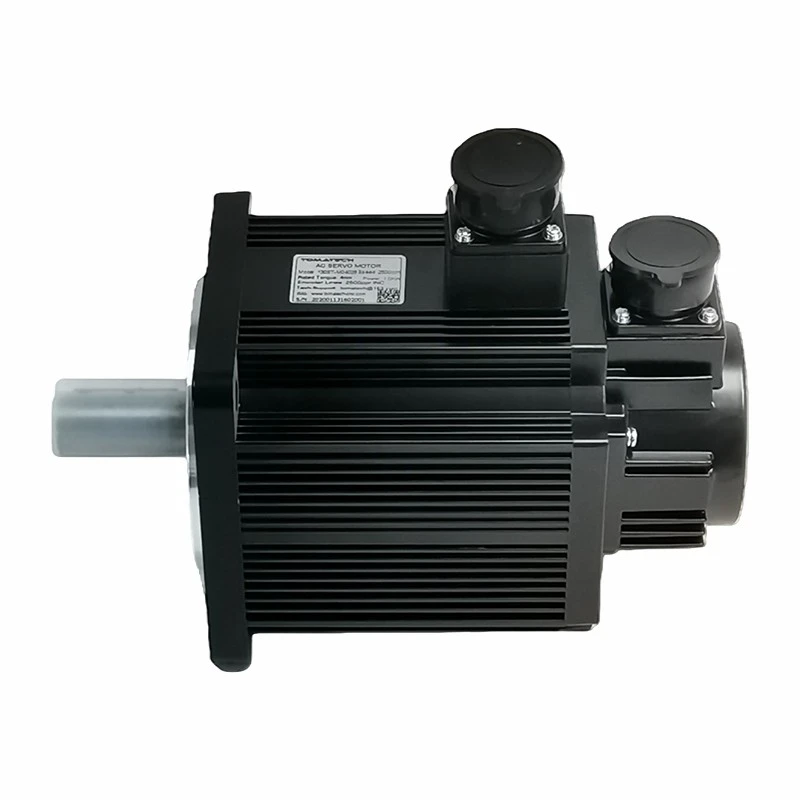

130mm frame 1.0~3.8KW AC Servo motor
High Inertia 130mm Flange AC Servo Motor adopt Japanese NEMICON high quality optical incremental encoder,The motor operates stably with low noise, featuring excellent torque output and a 3 times overload capacity. When paired with our company's K1 series AC servo drives, it is widely used in industries such as CNC machine tools, packaging, electronics 3C, and logistics. It boasts high stability in operation.
DATASHEET:
|
Model |
130ST-M04025 |
130ST-M05025 |
130ST-M06025 |
130ST-M07725 |
130ST-M10010 |
|||||||||||||||||||||
|
Matched driver |
GA3208A |
G2A3215A |
G2A3215A |
G2A3222A |
G2A3208A |
|||||||||||||||||||||
|
Rated power(KW) |
1.0 |
1.3 |
1.5 |
2.0 |
1.0 |
|||||||||||||||||||||
|
Rated voltage(V) |
220 |
220 |
220 |
220 |
220 |
|||||||||||||||||||||
|
Rated current(A) |
4.0 |
5.0 |
6.0 |
7.5 |
4.5 |
|||||||||||||||||||||
|
Rated speed(rpm) |
2500 |
2500 |
2500 |
2500 |
1000 |
|||||||||||||||||||||
|
Holding torque(nm) |
4.0 |
5.0 |
6.0 |
7.7 |
10 |
|||||||||||||||||||||
|
Peak torque(nm) |
12 |
15 |
18 |
22 |
20 |
|||||||||||||||||||||
|
Voltage constant(v/1000*rpm) |
72 |
68 |
65 |
68 |
140 |
|||||||||||||||||||||
|
Torque coefficient(N.m/A) |
1 |
1 |
1 |
1.03 |
2.2 |
|||||||||||||||||||||
|
Rotor inertia(Kg.m2) |
0.85X10-3 |
1.06x10-3 |
1.26x10-3 |
1.53x10-3 |
1.94X10-3 |
|||||||||||||||||||||
|
Line-Line Resistance(Q) |
2.76 |
1.84 |
1.21 |
1.01 |
2.7 |
|||||||||||||||||||||
|
Line-Line Inductance(mH) |
6.42 |
4.9 |
3.87 |
2.94 |
8.8 |
|||||||||||||||||||||
|
Electric time-constant (Ms) |
2.32 |
2.66 |
3.26 |
3.80 |
3.26 |
|||||||||||||||||||||
|
Weight(Kg) |
6.2 |
6.6 |
7.4 |
8.3 |
10.2 |
|||||||||||||||||||||
|
Model |
130ST-M10015 |
130ST-M10025 |
130ST-M15015 |
130ST-M15025 |
||||||||||||||||||||||
|
Matched driver |
G2A3215A |
G2A3222A |
G2A3222A |
GA3230B |
||||||||||||||||||||||
|
Rated power(KW) |
1.5 |
2.6 |
2.3 |
3.8 |
||||||||||||||||||||||
|
Rated voltage(V) |
220 |
220 |
220 |
220 |
||||||||||||||||||||||
|
Rated current(A) |
6.0 |
10.0 |
9.5 |
13.5 |
||||||||||||||||||||||
|
Rated speed(rpm) |
1500 |
2500 |
1500 |
2500 |
||||||||||||||||||||||
|
Holding torque(nm) |
10 |
10 |
15 |
15 |
||||||||||||||||||||||
|
Peak torque(nm) |
25 |
25 |
30 |
30 |
||||||||||||||||||||||
|
Voltage constant(v/1000*rpm) |
103 |
70 |
114 |
67 |
||||||||||||||||||||||
|
Torque coefficient(N.m/A) |
1.67 |
1.0 |
1.58 |
1.11 |
||||||||||||||||||||||
|
Rotor inertia(Kg.m2) |
1.94X10-3 |
1.94X10-3 |
2.77X10-3 |
2.77X10-3 |
||||||||||||||||||||||
|
Line-Line Resistance(Q) |
1.5 |
0.73 |
1.1 |
0.49 |
||||||||||||||||||||||
|
Line-Line Inductance(mH) |
4.37 |
2.45 |
4.45 |
1.68 |
||||||||||||||||||||||
|
Electric time-constant (Ms) |
2.91 |
3.36 |
4.05 |
3.43 |
||||||||||||||||||||||
|
Weight(Kg) |
10.2 |
9.8 |
12.6 |
11.7 |
||||||||||||||||||||||
|
Encoder line(CPR) |
2500 |
|||||||||||||||||||||||||
|
Isolation class |
Class F |
|||||||||||||||||||||||||
|
Safety class |
IP65 |
|||||||||||||||||||||||||
|
Using environment |
Temperature: -20^0〜+40 °C Humidity Below 90%RH No dewing |
|||||||||||||||||||||||||
|
Motor power plug |
Lead wire |
U |
V |
w |
PE |
|||||||||||||||||||||
|
Plug No. |
2 |
3 |
4 |
1 |
||||||||||||||||||||||
|
Encoder socket(15pins) |
Lead wire |
5v |
0v |
A+ |
B+ |
Z+ |
A- |
B- |
Z- |
U+ |
V+ |
W+ |
U- |
V- |
W- |
PE |
||||||||||
|
Pin No. |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
1 |
|||||||||||
Installation :
1,Do not hit shaft hardly, in case of encoder get damaged.
2, It's better to prevent strong vibration , protect bearing.
|
130 Series |
|||||||||
|
Rated torque(N*M) |
4 |
5 |
6 |
7.7 |
10 |
15 |
|||
|
1000rpm 1500rpm |
2500rpm |
2500 |
1500 |
2500 |
|||||
|
L Without brake |
166 |
171 |
179 |
192 |
213 |
209 |
166 |
231 |
|
|
L With electromagnet brake |
223 |
228 |
236 |
249 |
294 |
290 |
223 |
312 |
|
FEATURES:
Rated voltage: 220VAC
Rated power :High Inertia 130mm Flange AC Servo Motor
Frame size :130mm
Encoder: 2500 lines optical incremental encoder
IP65
All series oil seal
Aviation connector
Lower noise and lower temperature rise
Strong overload capacity up to 3.5times at most
Application:
High Inertia 130mm Flange AC Servo Motor Based on the next-generation structural design, it features higher energy density and lower heat generation, and can withstand 3.5 times of short-term overload. The motor also has a higher protection rating against water and oil ingress, making it widely applicable in the field of precision CNC machine tool metal cutting
