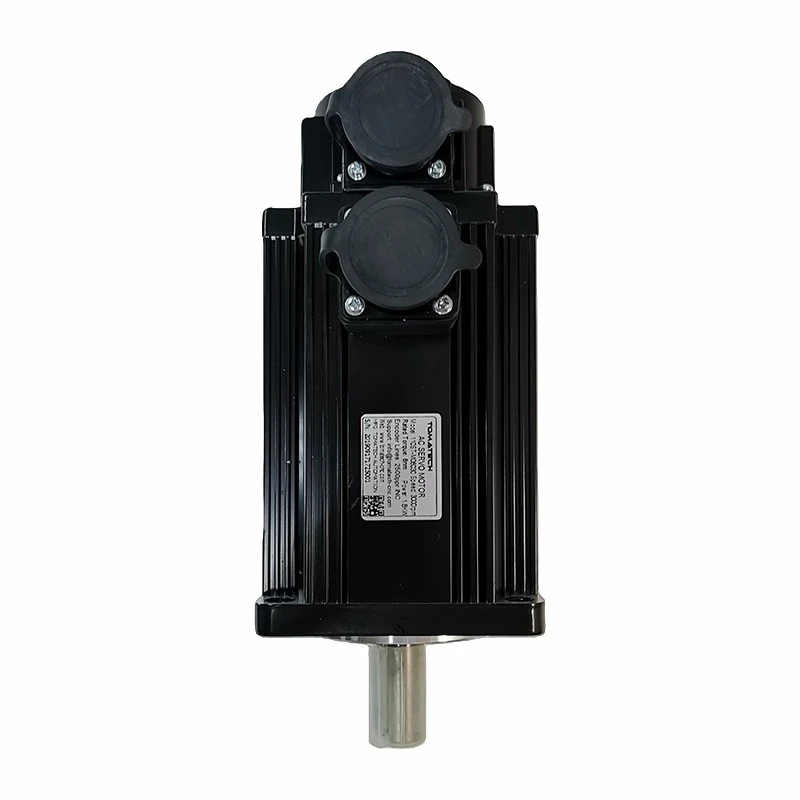

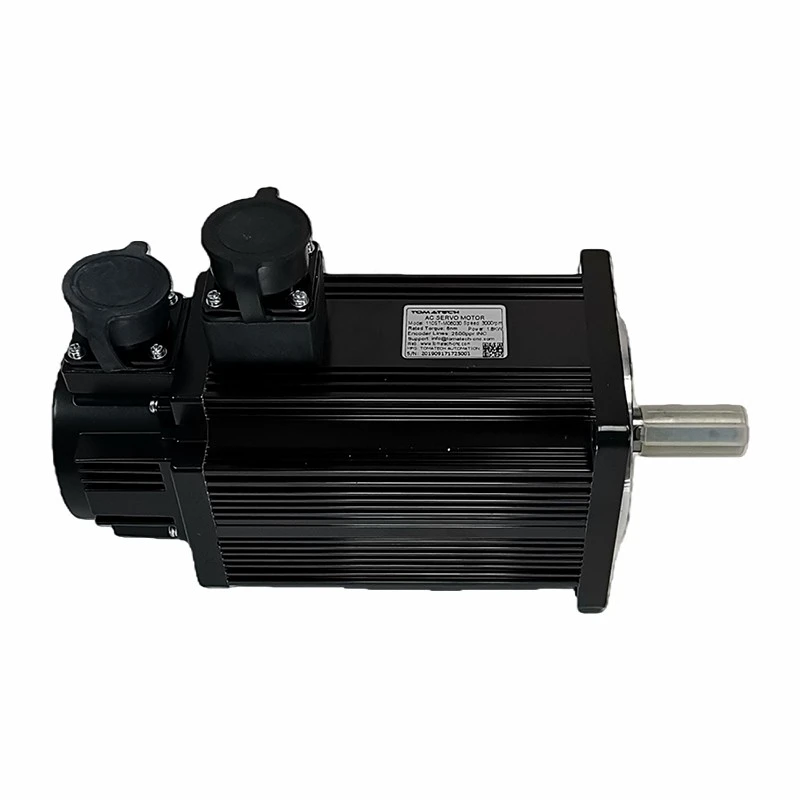

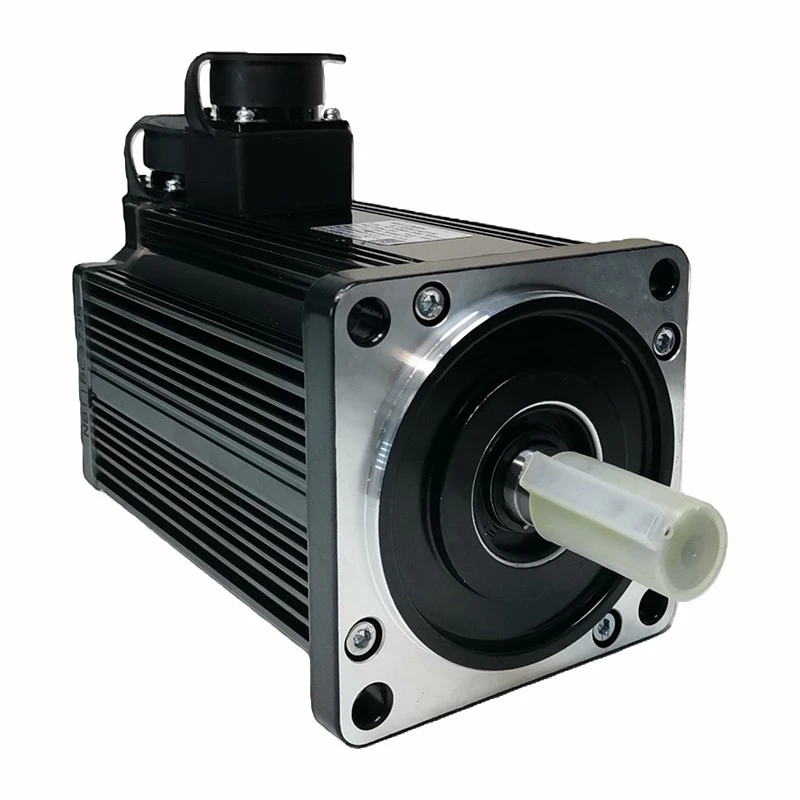

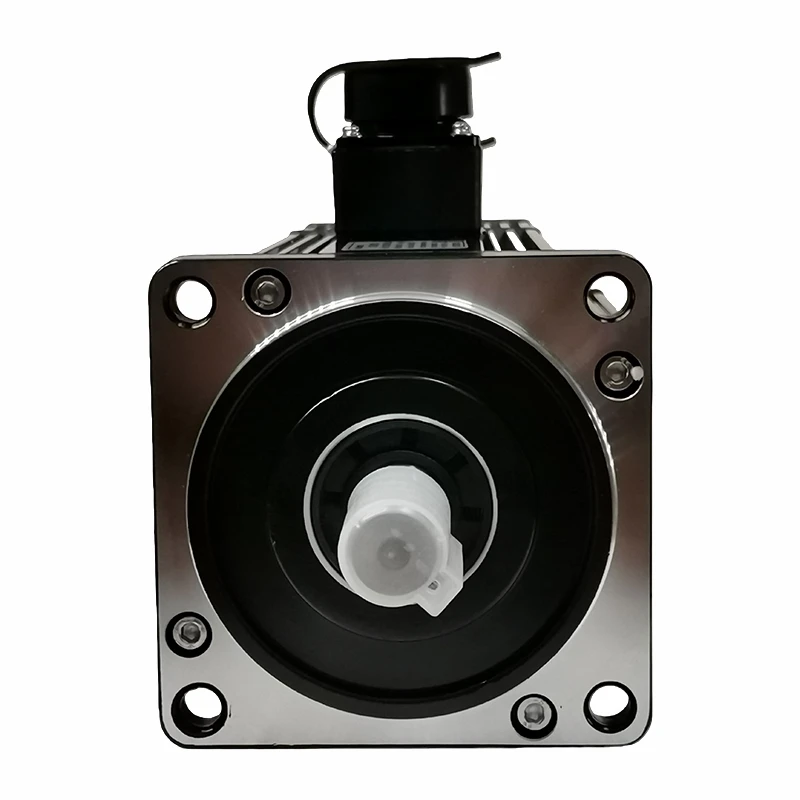

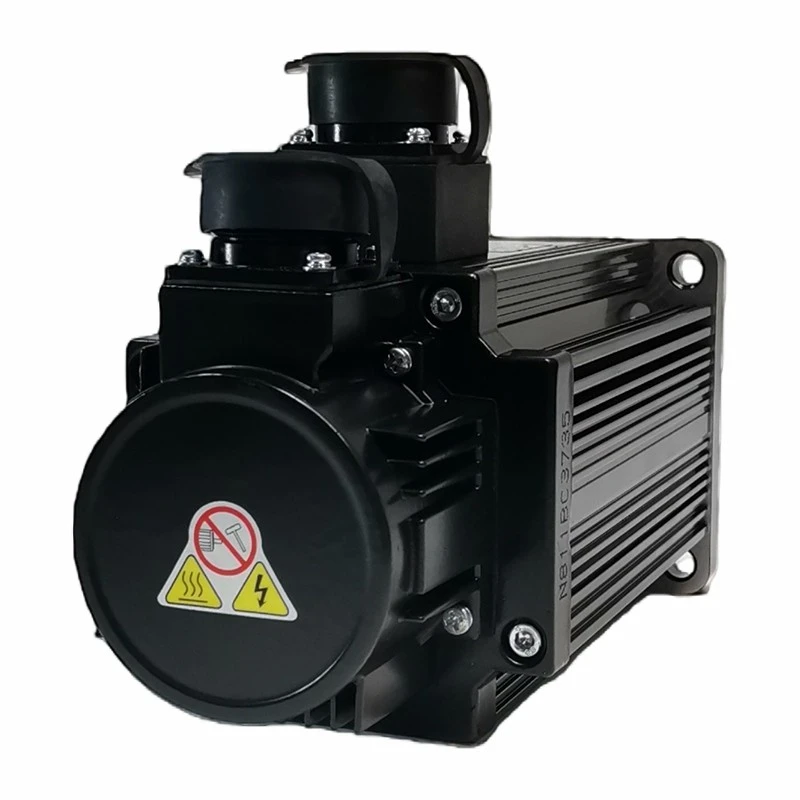

110mm frame 1.2~1.8KW AC Servo motor for CNC machines

Production production：

High Quality 110mm Flange Servo Motor adopt Japanese NEMICON high quality optical incremental encoder,The motor operates stably with low noise, featuring excellent torque output and a 3 times overload capacity. When paired with our company's K1 series AC servo drives, High Quality 110mm Flange Servo Motor is widely used in industries such as CNC machine tools, packaging, electronics 3C, and logistics. It boasts high stability in operation.

Model	110ST-M04030				110ST-M05030					110ST-M06020						110ST-M06030
Matched driver	K1AS15AA				K1AS15AA					K1AS22AA						K1AS22AA
Rated power(KW)	1.2				1.5					1.2						1.8
Rated voltage(V)	220				220					220						220
Rated current(A)	5.0				6.0					4.5						6.0
Rated speed(rpm)	3000				3000					2000						3000
Holding torque(nm)	4				5					6						6
Peak torque(nm)	12				15					12						18
Voltage constant(v/1000*rpm)	54				62					83						60
Torque coefficient(N.m/A)	0.8				0.83					1.3						1.0
Rotor inertia(Kg.m²)	0.54x10-³				0.63x10-³					0.76X10-³						0.76X10-³
Line-Line Resistance(Q)	1.09				1.03					1.46						0.81
Line-Line Inductance(mH)	3.3				3.43					4.7						2.59
Electric time-constant (Ms)	3				3.33					3.2						3.2
Weight(Kg)	6				6.8					7.9						7.9
Encoder line number(PPR)	2500
Isolation class	Class F
Safety class	IP65
Using environment	Temperature: -20^0〜+40 °C Humidity Below 90%RH No dewing
Motor power plug	Lead wire	U					V					w						PE
	Plug No.	2					3					4						1
Encoder socket(15pins)	Lead wire	5v	0v	A+		B+	Z+	A-	B-		Z-		U+	V+	W+		U-		V-	W-	PE
	Pin No.	2	3	4		5	6	7	8		9		10	11	12		13		14	15	1

Features:

Rated voltage 220VAC
Rated power 1.2KW~1.8KW
Frame size 110mm for High Quality 110mm Flange Servo Motor
2500 lines incremental encoder
IP65
All series oil seal
Aviation connector
Lower noise and lower temperature rise
Strong overload capacity up to 3.5times at the most

Installation :

1 ,Do not hit shaft hardly, in case of encoder get damaged.

2, It's better to prevent strong vibration , protect bearing.

110mm frame 1.2~1.8KW AC Servo motor for CNC machines
Rated torque(Nm)	2		4	5		6
L Without brake	159		189	204		219
L With permanent magnet brake	215		245	260		275
L With electromagnet brake	233		263	278		293
Cable for option		(Pulse cable)Controller to driver			3-10M for option
		(Encoder cable)Encoder to driver			3-10M for option
